Product Description

Befco DR0-308 Rotary Rakes | 20-50 HP For Tractors

Included Options

• Heavy Duty Construction: Built with a heavy frame and high strength components for long-lasting performance.
• Efficient Tine Design: Spring steel double tines ensure effective raking and easy maintenance.
• Safety Features: Includes a sturdy guard rail and ratchet torque limiter for safe operation.

DESCRIPTION

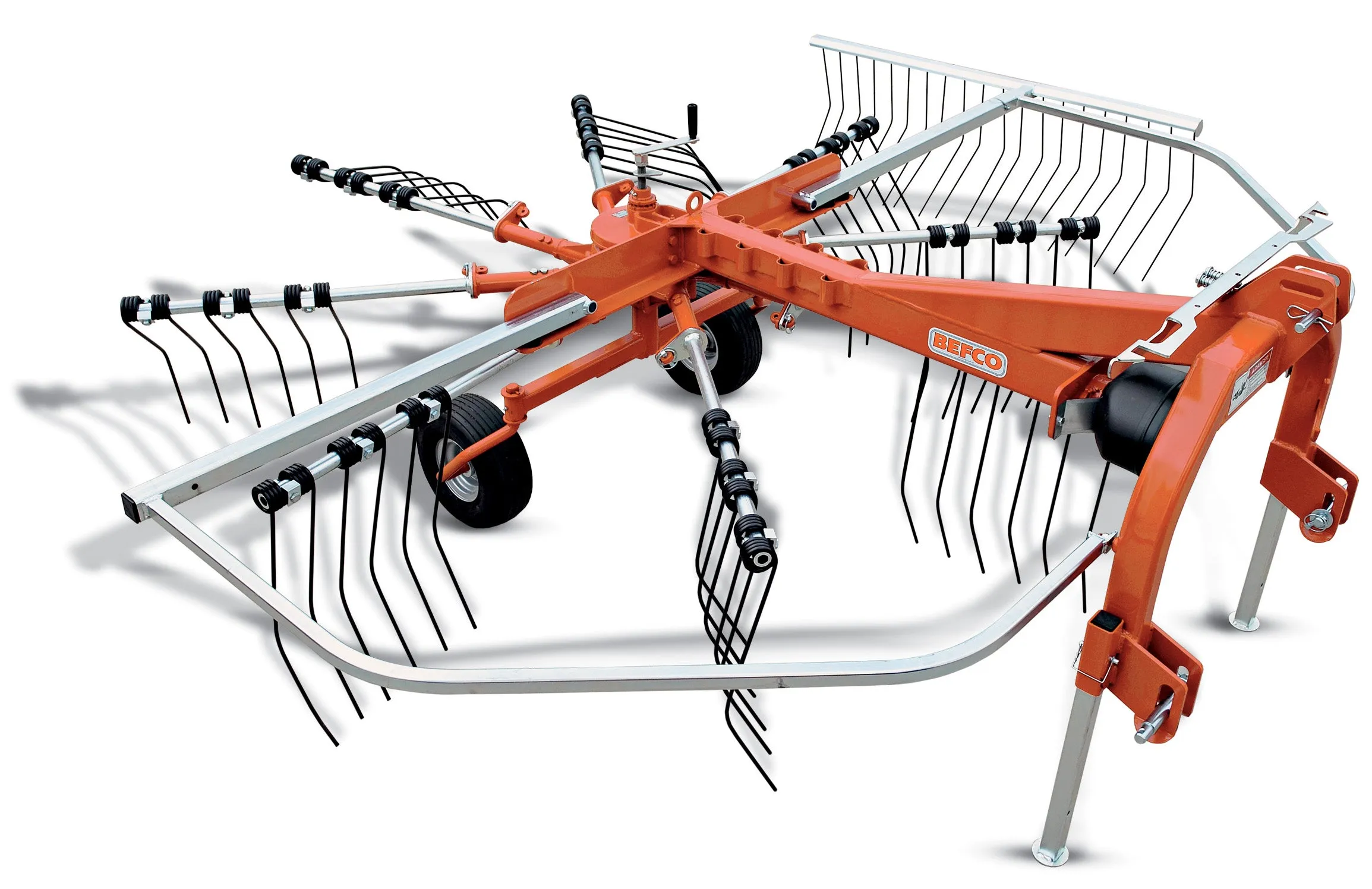

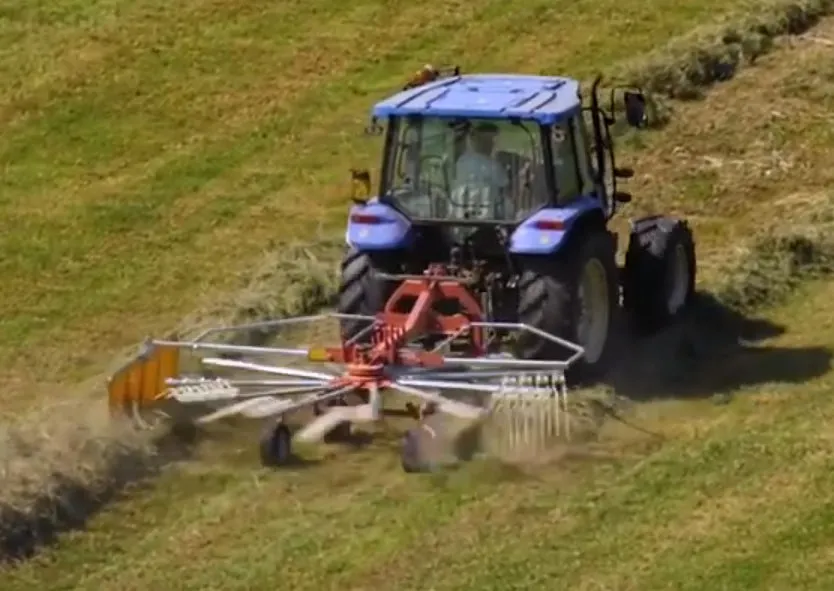

The BEFCO DR0-308 Rotary Rake is engineered to deliver superior hay raking efficiency, making it the perfect choice for farmers looking to maximize productivity and hay quality. With a 10' working width, this rake effectively gathers hay while forming clean, uniform windrows, ensuring easier baling and less loss.

Designed for tractors between 20-50 HP, the DR0-308 operates at 540 rpm and features a floating hitch, allowing the unit to follow ground contours for consistent raking without soil contamination. The heavy-duty frame construction provides stability and durability, ensuring long-lasting performance in the field.

This rake is equipped with spring steel double hay tines, pneumatic tires, and a ratchet torque limiter, adding both efficiency and safety to your hay harvesting process. The easy tine arm removal system allows for quick storage and transport, making it a practical and versatile tool for any farm.

Key Features

• Power Requirements: Suitable for tractors with 20-50 HP (15-37 KW).
• Hitch Compatibility: Cat. 1 & 2, 3-point linkage.
• PTO Specifications: Operates at 540 rpm with a heavy-duty shielded PTO shaft (1 3/8″ ASAE cat. 1) and ratchet torque limiter for safety.
• Heavy Frame Construction: Ensures durability and stability during operation.
• High Strength Steel Tine Arms: Equipped with spring steel double hay tines for efficient raking.
• Large Diameter Pneumatic Tires: Features 15″x6″ tires for smooth operation over rough terrain.
• Easy Tine Arm Removal System: Quick and easy removal of tine arms for transport and storage.
• Sturdy Guard Rail: Provides added safety during operation.
• Angled Tines: For high clearance and optimal raking performance.

Detailed Specifications

In Package

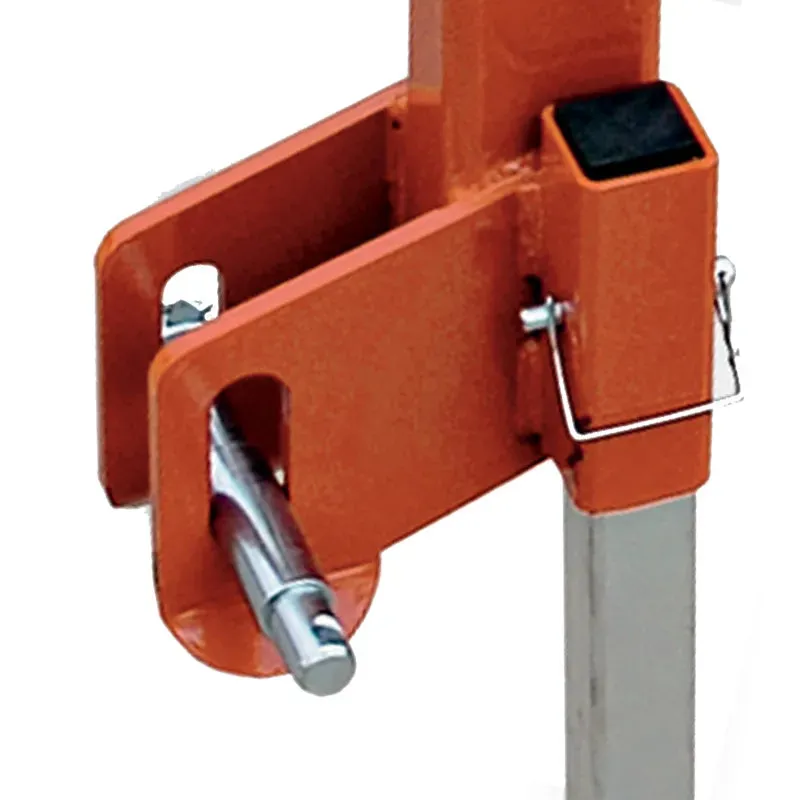

• Floating Hitch: Allows the unit to follow ground contours, preventing spring tines from picking up dirt and mixing it with raked hay.

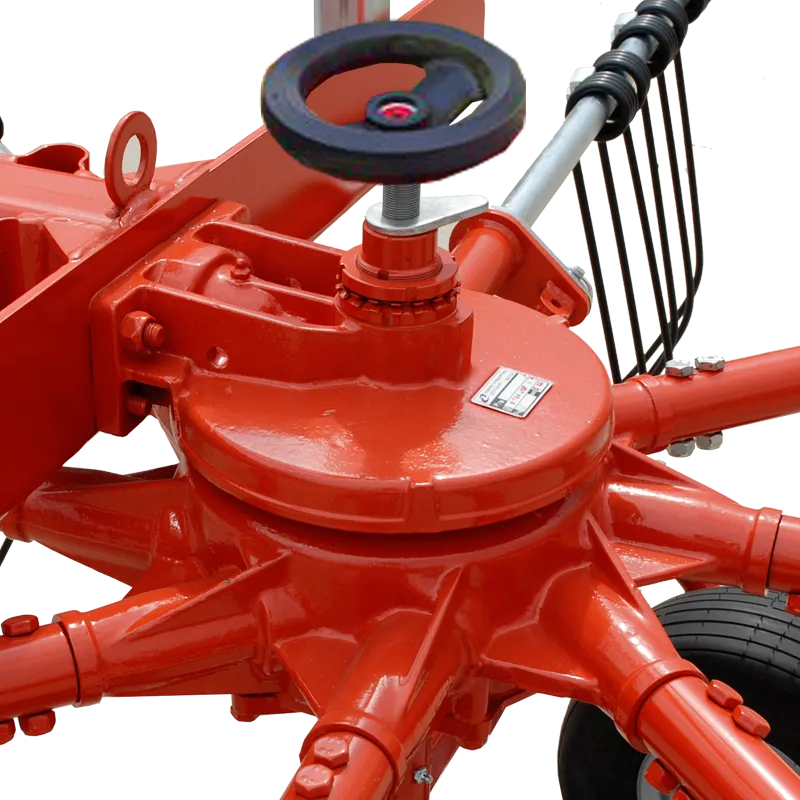

• Heavy Duty Gearbox: With raking depth adjustment handle.
• Easy Tine Arm Removal: Tine arms are secured with a lynch pin and can be easily removed and stored on top of the frame, minimizing transport and storage width. Guards also fold up.

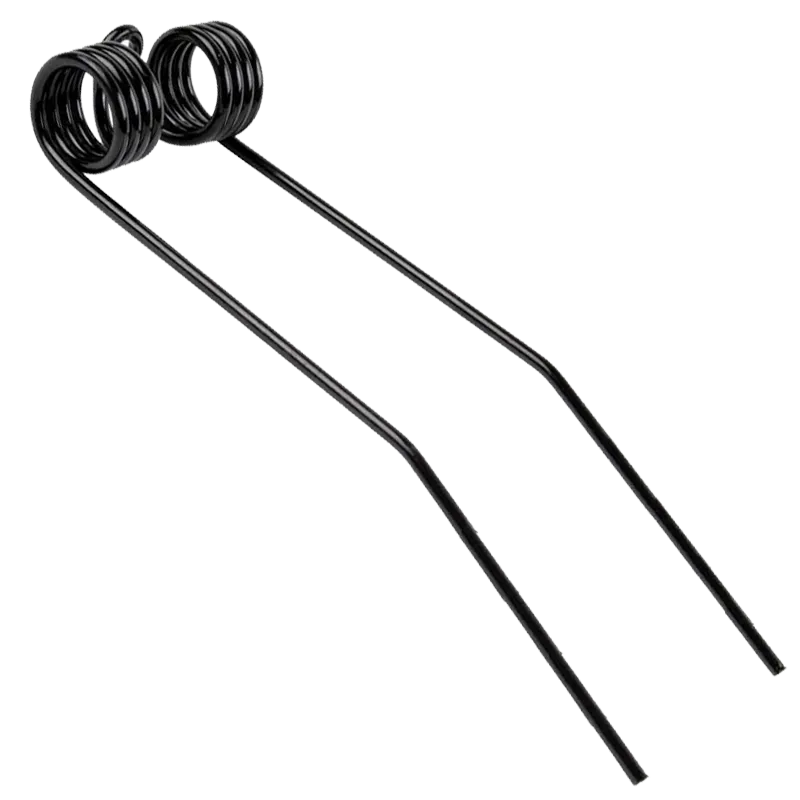

• Spring Steel Tines: High strength spring steel tines secured with one bolt for fast and easy replacement. Each unit has three spring tines per arm, totaling 24 springs.

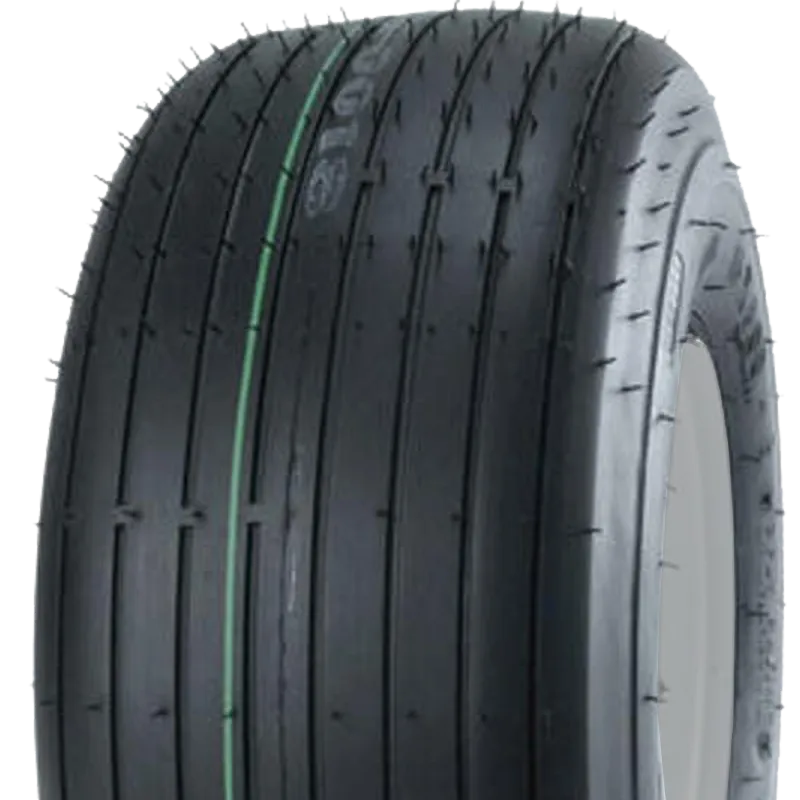

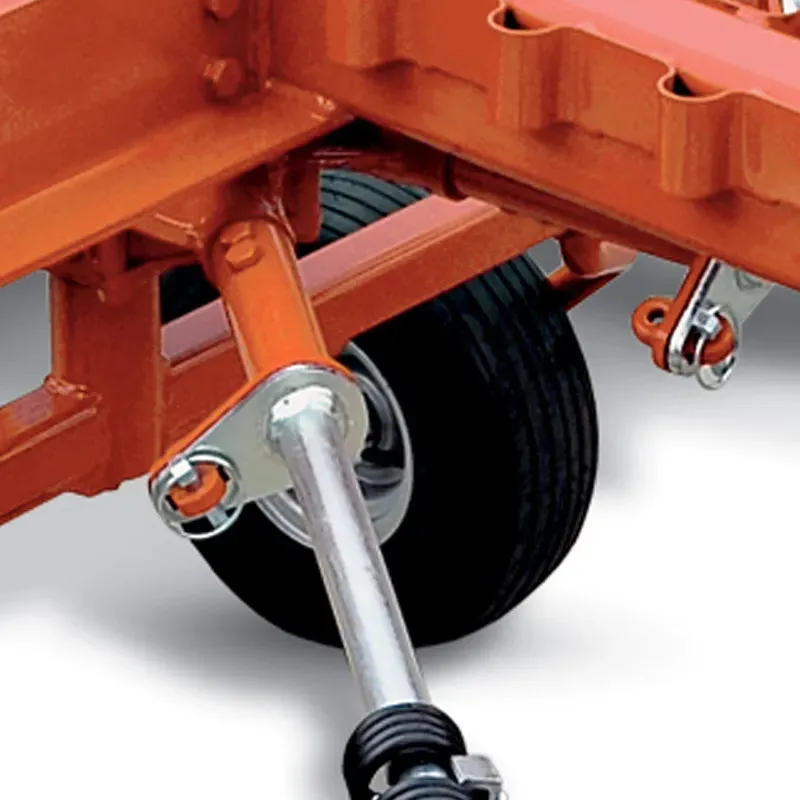

• Pneumatic Tires: Equipped with two Ø 15″x6″ pneumatic tires.

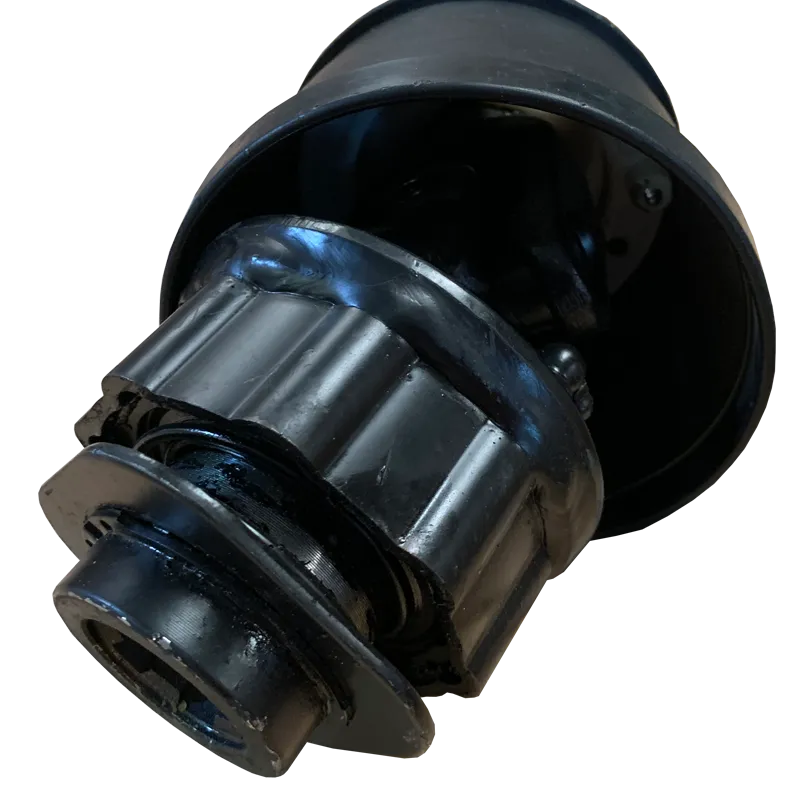

• Ratchet Torque Limiter: Cat. 1 driveline with a ratchet torque limiter for safety, preventing damage when the tractor PTO is disengaged.
